|Specification will be changed for improvement without notice.|

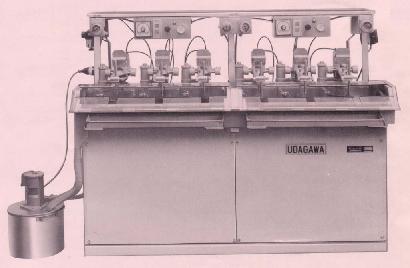

|1)@The high speed and high pressure machine with using lens holder is
@@work of lens diameter between 20 and 100 mm and dish diameter up to 120 mm by
2)@Functions (Lower spindle speed, upper spindle oscillating frequency, work
@@pressure, polishing time and starting button) are controlled by each 3
3)@Upper spindle is moved following the locus of approximate ellipse with
@@warrantable mechanism and tommy-bar can be directed to sphrical center
@@on concave or convex surface.
4)@Work pressure is controlled by air. Polishing time is set by timer. The
@@work is easy to load and unload as works are pressurized by pushing start
@@button and released by finishing cycle automatically.
5)@Upper spindle is lifted by snap-switch for changing lens dish and cleaning
6)@Coolant tank is made of stanless steel and coolant pump is applied rust proof
@@and seal treament with blades for agitating .@Unifomity abrasive liquid can
@@be fed with preventing abrasive precipitation.
