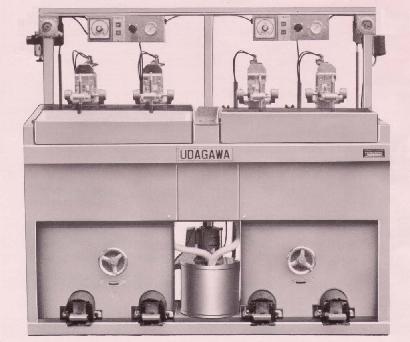

Medium-size Oblique Spindle High Speed Polishing Machine
|Specification will be changed for improvement without notice.|
|1)@The high speed polishing machine with sticking multi-lenses is high
@@ellicient to polish deep dish works.@The oblique spindle type machine
@@is for polishing work larger than lens radius of 16mm. and up to
@@dish diameter of 120 mm.@Oblique spindle can be selected at any angle
@@between 0 ` 30
2j@Functions (Lower spindle speed, Work Pressure, Plishing time, Starting
@@button) are controlled by 2 spindles.
3j@Upper spindle is oscillated at the fixed frequency, and tommy-bar can
@@be directed to spherical center.@Work pressure mechanism is designed
@@to pressurize every work equally.
4j@Work pressure si controlled by air.@Tommy-bar is moved to up and down
@@by foot pedal attached on eash spndle.@Polishing time is set by timer
@@(The other tyoe pressurizing work with starting cycle and releasing work
@@by finishing cycle is available.)
5j@Abrasive liquid tank is made of stainless steel and abrasive liquid
@@pump is rust proof and seal treatment and fitted blades for agitating.
@@Uniformity abrasive liquid can be fed with preventing abrasive
