|Specification will be changed for improvement without notice.|

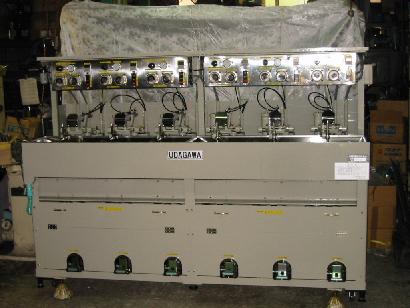

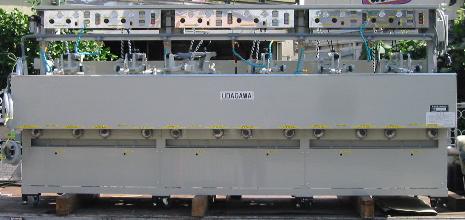

|1)@The machine is to polish spherical and flat surface work under 250
2)@Upper and lower spindles can be selected individual speeds as each spindle is
@@driven be each motor.
3)@Functions (polishing time and start button) are controlled by each 2 spindles.
@@Individual control for each spindle is availabel on requeat.@Spindle can be
@@stopped by each.
4)@Upper spindle is moved following the locus of approximate ellipse with
@@warrantable mechanism and tommy-bar can be directed to spherical center on
@@concave or convex surface.

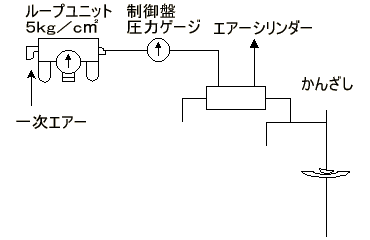

5)@Work pressure is controlled by air.@tommy-bar is moved to up and down by foot
@@pedal attached on each apindle.@Polishing timer is set by timer.
6)@Coolant tank is made of stainless steel and coolant pump is applied rust
@@proof and seal treatment and fitted blades for agitating .@Uniformity abrasive
@@liquid can be fad with preventing abrasive precipitation.
|Pressurizing two step six ream specification|
