|Specification will be changed for improvement without notice.|

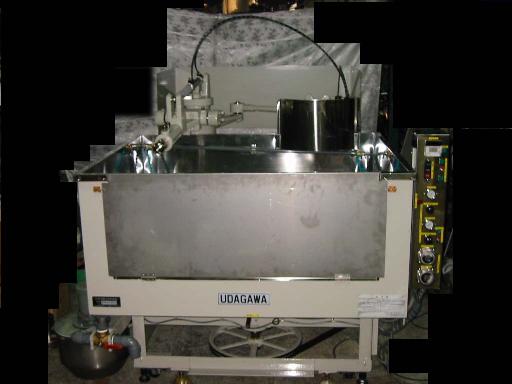

|1)@The machine is to polish spherical and plane surface of work diameter
@@under 500 mm.
2)@Functions are controlled by each spindle.
3j@Lens dish or work is easy to load and unload, and the front of work
@@tank is opened.
4)@Upper spindle can ve set any position from the center of oscillating
@@axis and is oscillated with circular arc centering the set position
@@as the cardinal point.

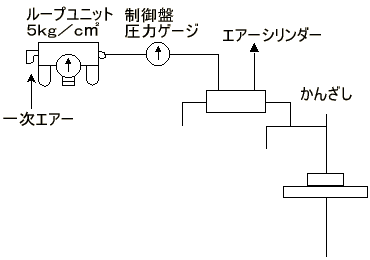

5)@Work pressure is control by air to up and down tommy-bar with snap-
@@switch installed on each spindle.@Polishing time is set with timer.
6)@Abrasive liquid tank is made of stainless steel and sbrasive liquid
@@pump is applied rust proof and seal treatment and fitted blades for
@@agitating.@Uniformity abrasive liquid can be fed with preventing
