|Specification will be changed for improvement without notice.|
|We are acceptable of buyer's option to change speed and clearance between
end of lower spindle shaft to the horizon of overarm pin arm.
We are also ready to supply of automatic stop system by timer action; negative
pressure system and special equipment to place gently a heavy upper tool on to
lower spindle tool, if so buyer desired.

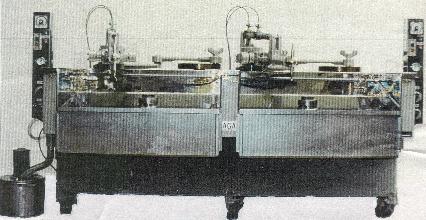

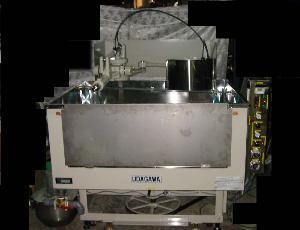

(Photographed caster is to be supplied optinally)
|1)@This is the machine to polish spherical or flat surface lenses up to
Max. 800 mm
@@by lapping or fine polishing.
2)@Infinitely variable motors are used for lower spindle and oscillation,thus
@@individual and optional speeds are available.
3)@The movement of overarm pins by "OSKAR" motion and it's maximum stroke comes to
@@500 mm and sophisticated mechanical design allows to set a center point of
@@polishing stroke at any point on lower polishing tool.
4)@Lifting up and down of overarm pins is operated by air cylinder mechanism
@@following up and down motion of toggle switch by manual operation.
5)@The front door of polishing basin with automatic slurry circulation is freely
@@openable to fasten or unfasten polishing tools or work pieces.
6)@Slurry tank is stainless -steel made and is desingned for long durability in use
@@and also for supplying of equal density of slurry mixture.
7)@The machine is elaborately designed to give the machine longer life, easier
@@operation, non-lubrication for longer hours and maintenance-free structure.
