r @f@r @o@l
|Specification will be changed for improvement without notice.|
|We are acceptable of buyer's option to change speed and clearance between
upper-end of lower spindle shaft to the horizon of overarm spindle arm.
We are also ready to supply of automatic stop system by timer action; negative
pressure system and special equipment to place gently a heavy upper tool on to
lower spindle tool, if so buyer desired.

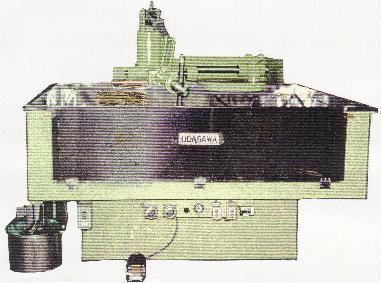

|1)@This is the machine to polish spherical or flat surface lenses up to
Max. 1200 mm
@@by lapping or fine polishing.
2)@Infinitely variable motors are used for lower spindle and oscillation,thus
@@individual and optional speeds are available.
3)@The movement of overarm pins by "OSKAR" motion and its maximum stroke comes
@@to 650 mm and sophisticated mechanical design allows to set a center point of
@@polishing stroke at any point on lower polishing tool.
4)@Lifting up and down of overarm pins is operated by air cylinder mechanism
@@by foot-pedal operation.
5)@The front door of polishing basin with automatic slurry circulation is freely
@@openable to fasten or unfasten polishing tools or work pieces.
6)@The machine is elaborately designed to give the machine longer life, easier
@@operation, non-lubrication for longer hours and maintenance-free structure.
