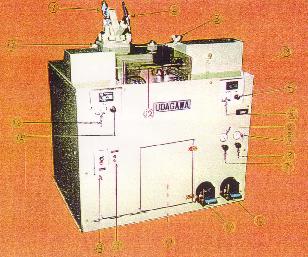

Columned Surface Polishing Machine
|1)@Super polishing machine for columned surface lenses in high accuracy
2)@The work capacity of this machine is max. 250 mm in length and max. 200 mm in
3)@Having adjusting mechanism of stroke and width of upper and lower spindles,
@@holding them steadily in optical axis direction.
4)@Polishing pressure is produced by air cylinder system and to start machine with
@@setting up of pressure strenght and polishing hours, the machine is
@@automatically actuated and the pressure is released upon the termination of
@@polishing hours.@Thus, blocking or unblocking of lenses from tool is easily
5)@For change of tools or cleaning of slurry tank, overarm quill is lifted upward
@@and locked by switch operation..
6)@Slurry tank is stainless-steel made and is designed for long durability in use
@@and also for supplying of equal density of slurry mixture.
