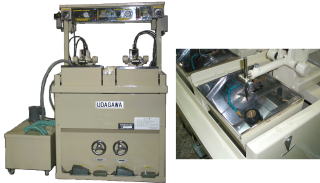

Medium size pellet machine for one-piece polishing
| @Number of Spindle | @2 spindles | |
| Upper Spindle |
@Oscillating frequency | @30 per minutes |
| @Oscillating stroke | @0 ` 60 mm | |
| Lower Spindle |
@Speed | @500 ` 2000 ... infinitely variable |
| @Slant@angle | @0 ` 30 degree to optional angle. | |
| @Timer | @digital timer 2pcs | |
| @Motor | @200V@@400W(with brake)@@4P@@3Σ@@2pcs. | |
| @200V@@ 40W(geared)@@4P@@3Σ@@2pcs. | ||
| @Coolant pump | @200V@@ 40W@@2P@@3Σ@@1pc. | |
| Dimensions | @Machine | @W 1,200@D 800@H 1,400@o |
| @Slurry tank | @W 400@D 700@H 300@o | |
| @Weight | @Machine | @320kg. |
| @Slurry tank | @30kg. | |
@@tool and lens holder in diameter of 10 ` 40 mm lenses.
2j Slanting forward of lower spindle shaft at an optional angle up to 35 degree is
@@availabel.@This slating shaft structure is especially effective for deep
@@surface tool, keeping good accuracy of surface.
3j The overarm pins have reciprocation mechanism in before and behind motion on
@@straight line.

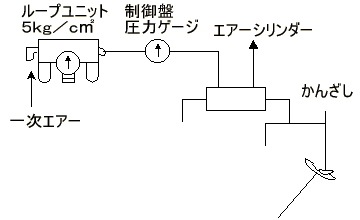

4j The polishing pressure is always available of approximate equal pressure how
@@high polishing tool is used.
